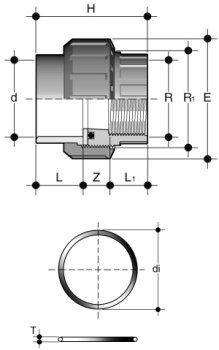

Unión 3 piezas (Tórica
en EPDM)
H-H
encolar-roscar en PVC-U |
|
 |
 |
|
d |
R |
PN |
R1 |
L |
L1 |
H |
Z |
E |
 |
|
16 |
3/8 |
16 |
3/4 |
14 |
11,4 |
41 |
15,6 |
33 |
|
20 |
1/2 |
16 |
1 |
16 |
15,0 |
45 |
14,0 |
41 |
|
25 |
3/4 |
16 |
1
1/4 |
19 |
16,3 |
51 |
15,7 |
50 |
|
32 |
1 |
16 |
1
1/2 |
22 |
19,1 |
57 |
15,9 |
58 |
|
40 |
1
1/4 |
16 |
2 |
26 |
21,4 |
67 |
19,6 |
72 |
|
50 |
1 1/2 |
16 |
2
1/4 |
31 |
21,4 |
72 |
19,6 |
79 |
|
63 |
2 |
16 |
2
3/4 |
38 |
25,7 |
88 |
24,0 |
98 |
|
75 |
2
1/2 |
10 |
3
1/2 |
44 |
30,2 |
108 |
34,0 |
123 |
|
90 |
3 |
6 |
4 |
51 |
33,3 |
124 |
40,0 |
140 |
|
110 |
4 |
6 |
5 |
61 |
39,3 |
138 |
38,0 |
165 |
|
